Product Code: BS-T101(LEFT)
BS-T102 (RIGHT)

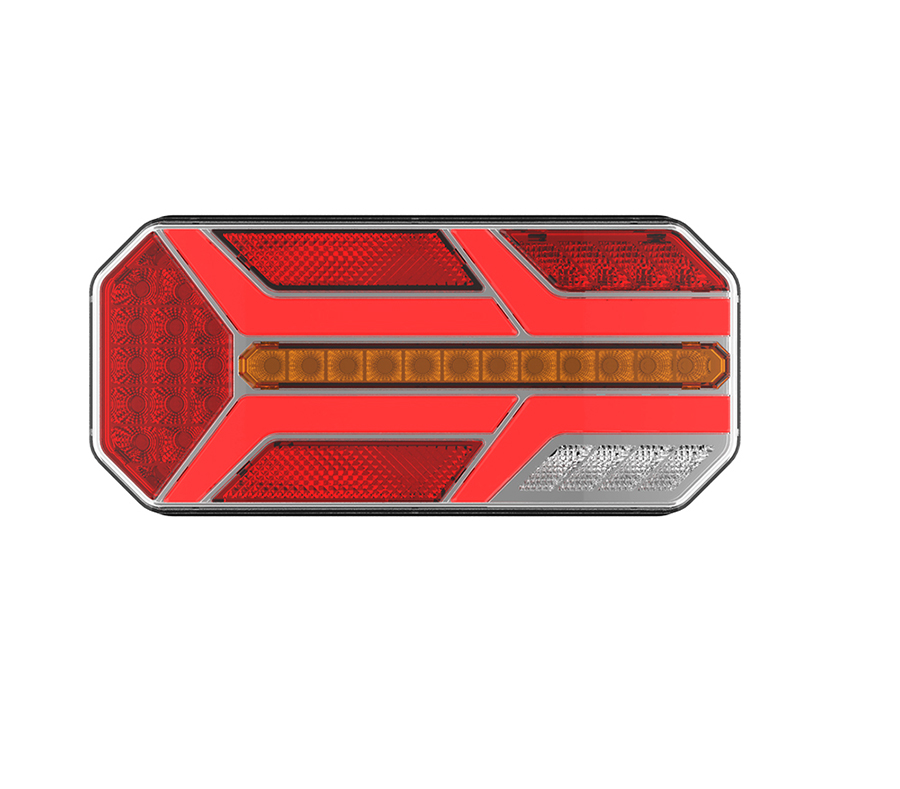

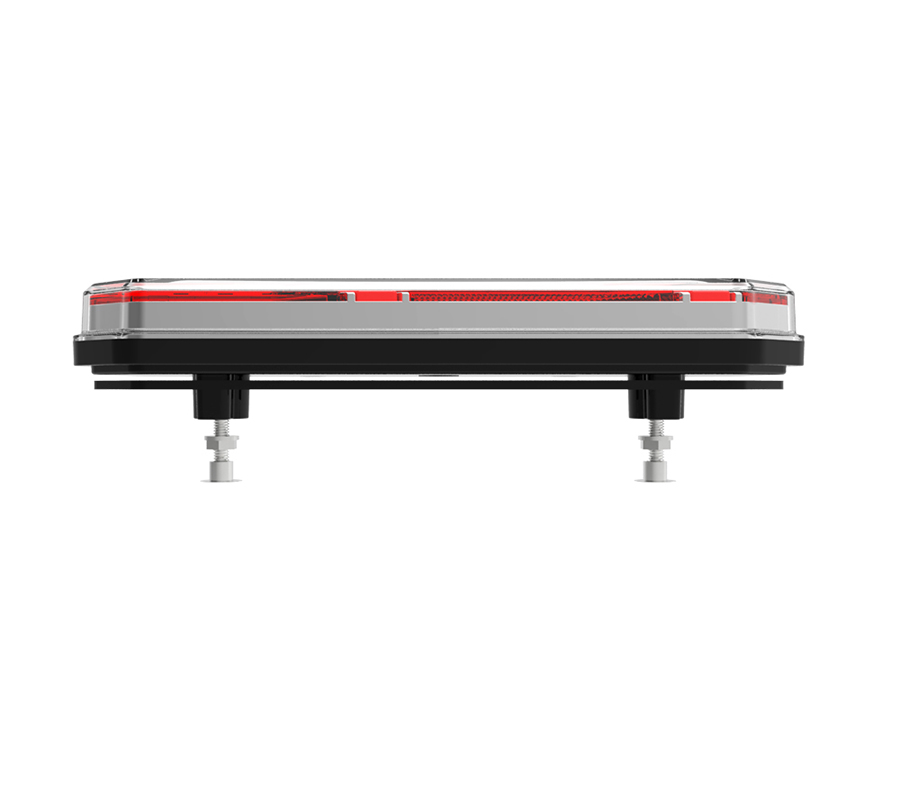

Description: LED Multifunctional Rear Lamp
Modern design, integrated control unit for multi-functions, with Dynamic indicator
Housing ABS (black), Lens PC
Function: T/ST/DI/Reverse/RF/
Reflex/NPL
Voltage: 12-24V
Watt: T: 1.7W
ST: 2W
DI: 2.4W
Reverse: 4W
RF: 4.8W
NPL: 1.5W
LED QTY: T: 32PCS
ST: 15PCS
DI: 12PCS
Reverse: 4PCS
RF: 4PCS
NPL：4pcs
IP Rating: IP67
Certification: ECE: R7 R6 R23 R38 R3 R4
Operating Temperature: '-40°C~65°C
| Product Code | Description | Function | Voltage | Watt | LED Q'TY | IP Rating | Certification | Operating Temperature | |
| BS-T101 (LEFT) |
LED Multifunctional Rear Lamp Modern design, integrated control unit for multi-functions, with Dynamic indicator Housing ABS (black), Lens PC |
T/ST/DI/Reverse/RF/ Reflex/NPL |
12-24V | T:1.7W ST:2W DI:2.4W Reverse:4W RF:4.8W NPL：1.5W |
T:32PCS ST:15PCS DI:12PCS Reverse:4PCS RF:4PCS NPL：4pcs |
IP67 | ECE: R7 R6 R23 R38 R3 R4 EMC :R10 ROHS |
-40°C~65°C | |
| BS-T102 (RIGHT) |
|||||||||
